You could do 2 Deutsch style 12 pin connectors if you want to keep the ability to easily disconnect the injector harness. We did a delete on a car and just stagger cut, crimped and heat shrank them.



This is what i would do if i was going to do it. I use seamless barrel connectors and marine heat heat shrink. Marine grade has a heat activated glue/sealant



When staggering the cuts, did you have to extend the wires? 2 crimps per wire would make me lean more towards replacing with Deutch or Weatherpak connectors.



Yes. You can technically get away with not doing it iirc, but it’s tight. I would 100% recommend doing the deutsch connectors.



oh brother.
If I had money to do it right the first time, I’d have a Pro-M on there instead of the lowly OEM efi.
lol.



oh brother.
If I had money to do it right the first time, I’d have a Pro-M on there instead of the lowly OEM efi.
lol.

one of the perks of spending the money in the right places. and one of the reasons I bought the pro m.

If I told you how many times i repaired the harness, i should've just put in good used. I basically did the same thing you are about to. I did one wire at a time. staggered all the solder joints. I should've took pics. It was beautiful.



Just a suggestion, but if you use the stamped terminals (as opposed to the solid pins), you don't need to use the expensive crimper.
Example:

These pins...

Size 20 Stamped - Stamped Contacts - Contacts/Terminals

deutschconnectorstore.com

Can be crimped with these crimpers...

ABN Open Barrel Crimper, Wire Crimper Tool for 14-24 Gauge Wire, Pin Terminal Crimper, Crimp Tool, Wire Crimping Tool - - Amazon.com

ABN Open Barrel Crimper, Wire Crimper Tool for 14-24 Gauge Wire, Pin Terminal Crimper, Crimp Tool, Wire Crimping Tool - - Amazon.com

www.amazon.com

I hope this helps.



Wow I’m having the same problem with this crap salt and pepper connectors. I love the pin idea. What connectors go with those pins?

I get check engine light coming on at WOT with the d@mn connectors loose some other connection. Pisses me off. I LVR looked at a new engine harness ($$ ouch $$) from LMR but sure don’t want to do a body wiring harness as well!



Your easiest route may be to order them as "kits" with all the parts you will need.
It may also be worth keeping the connectors keyed (one grey, and one black), so you don't accidentally plug the wrong two together.

DTM Kit Configurable Item

deutschconnectorstore.com

Going this route, it looks like Grey = DTM12-N-SF ($14.62 set), and Black = DTM12-N-SF-BK ($19.95 set).
(Remember to select the stamped terminals)

BTW, I am not affiliated with this site. I just use it as a back up for work, in case Allied or Mouser is out of stock on what we need. You can probably get the parts a little cheaper from Allied or Mouser, or possibly even Waytek, but you will need to make sure to get all the pieces you need, which is a little difficult in COVID world right now. My one suggestion would be to avoid Amazon or eBay, to avoid the "copies" and "fake versions" of these connectors, which are problematic. That said, if it helps, Deutsch DTM connectors are interchangeable with Amphenol ATM connectors, so mix and match as needed.

I hope this helps.



That is super helpful.

That is super helpful. Thanks very much. Will look into those.



I use Deutsch style connectors for the race car stuff & would use them if deleting the salt / pepper connectors.

Use these crimpers they work great... I'll use them over the $280 pair of HDT's often because they're actually more comfortable.

IWISS Closed Barrel Crimper 4 Way Indent,8 Impression Type for Deutsch Solid Contacts gage 14,16&18(IWD-16) https://www.amazon.com/dp/B07V1C6N2...07V1C6N2V/ref=cm_sw_r_cp_api_glt_fabc_S9DAM695SQM8034VV5Q0?_encoding=UTF8&psc=1



I use Deutsch style connectors for the race car stuff & would use them if deleting the salt / pepper connectors.

Use these crimpers they work great... I'll use them over the $280 pair of HDT's often because they're actually more comfortable.

IWISS Closed Barrel Crimper 4 Way Indent,8 Impression Type for Deutsch Solid Contacts gage 14,16&18(IWD-16) https://www.amazon.com/dp/B07V1C6N2...07V1C6N2V/ref=cm_sw_r_cp_api_glt_fabc_S9DAM695SQM8034VV5Q0?_encoding=UTF8&psc=1

That’s the knockoff I was looking at. Looks like it would be fine for a one time project like this, but I’ll probably just go with the kit listed earlier.
Thanks all.



Metrapack has connectors with 10 pin.



Now that I‘ve researched Bubba Style on these Deutsch connectors, I’m going to go with the DT Series with the solid (closed barrel) contacts. They’re more expensive them the DTM Series but will take a higher amperage and bigger wire size.
These connectors look really slick. Should be a fun little project.



Exactly what I use for coil and injector harnesses.

Looking forward to the end result [emoji1360]



MX8 please keep us posted!!! you’ll get to it before me it sounds like. I need to do a TFI relocate project first.



Not to confuse the subject, since you're already on a good path, but Nitrous SSC's suggestion was a reasonable one as well. Going the Metri-pack route may save you a few dollars, and they're easy to work with. Its the same thing that Holley, FAST and BigStuff use for their injector harnesses, and what every factory LS motor uses for things like their coil harnesses (although 8-pin, not 10-pin).

Holley EFI 570-204 Ignition Sub-Harness Connector

Introducing the Holley EFI Wiring Shop. We have one goal, to provide you a one stop solution for all of your wiring components needs. From connectors and pins to wire loom and tools! We have everything you need to build or service your Holley EFI powered machine! Black Nylon braided wire loom...

www.holley.com

If you go this route, I think you're looking for 570-201, 570-202, 570-203 & 570-204. The easiest source would be direct from Holley, or from Summit or Jegs.

I hope this helps.



You’re right on the metri pack being cheaper. Personally I like the deutsch style connectors a little better, but both are upgrades over stock.



i used the metripak stuff until the Deutsch stuff came around.

metripak stuff is cheaper but the DTPs just look so much better and are a better quality imo



The plyers for the Metripack are cheap too. $17 on Amazon. I just redid some of my Holley harness because I did something stupid with a torch. Haha.



The plyers for the Metripack are cheap too. $17 on Amazon. I just redid some of my Holley harness because I did something stupid with a torch. Haha.

haha oops, got a little too happy with the torch eh?

A few years back I bought a really nice Weather Pack kit with a decent crimper from Weatherpack.com
They offer the Metripack variety as well. There's nothing wrong with the Delphi stuff, the auto manufacturers used it for years, they provide a solid, weatherproof connection & don't look half bad either.

Depending on application & vehicle, I use Deutsch or the Delphi stuff.... you won't find anything else on my cars.



I like those holley connectors......I think I’m going to change direction and use the series linked:

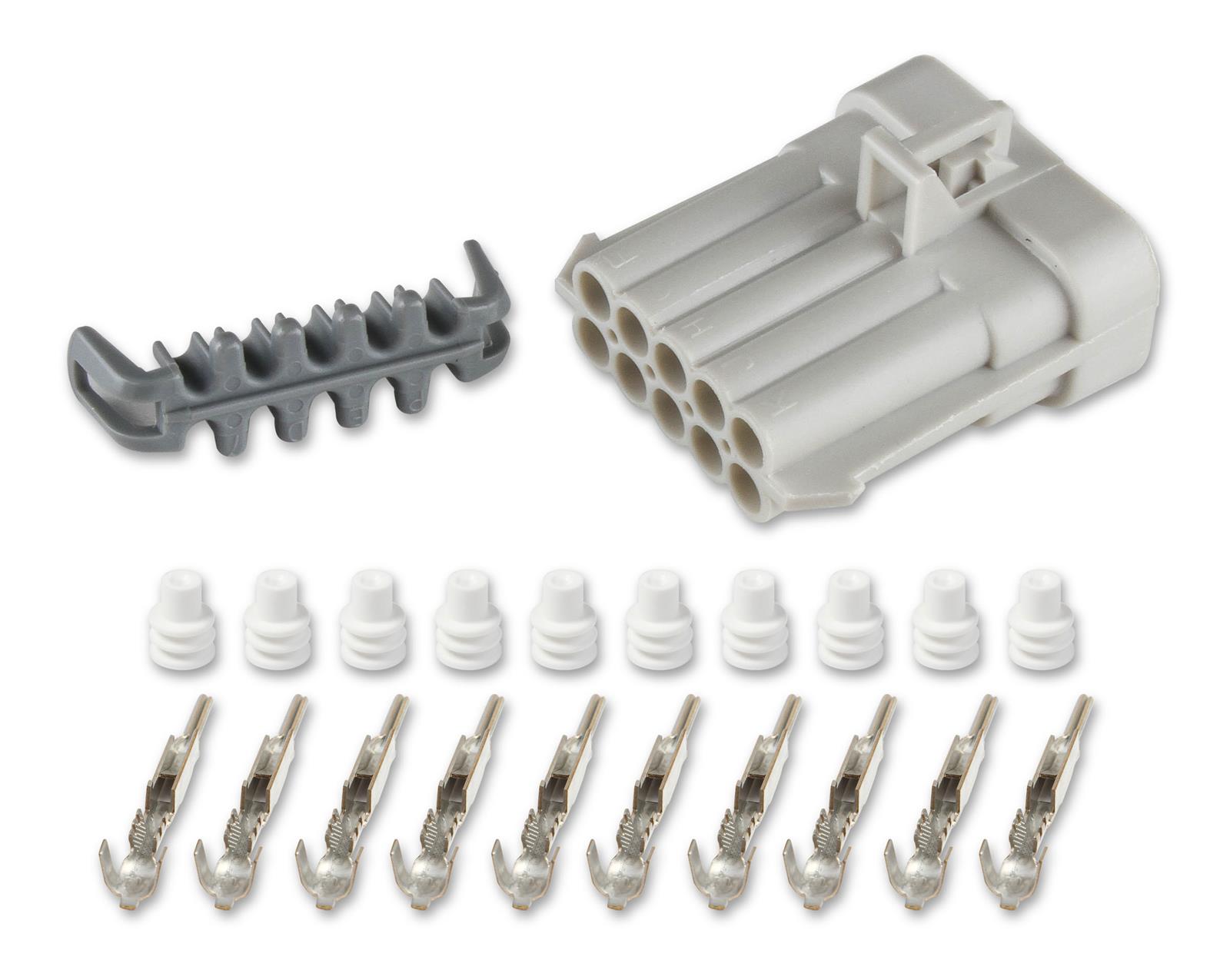

Holley 570-201 Holley Wiring Harness Connectors | Summit Racing

Free Shipping - Holley Wiring Harness Connectors with qualifying orders of $99. Shop Weatherproof Connectors at Summit Racing.

www.summitracing.com

Just wondering if someone can confirm I have the right crimper here for them:

MSD Ignition 3511 MSD Weathertight Crimp Pliers | Summit Racing

Free Shipping - MSD Weathertight Crimp Pliers with qualifying orders of $99. Shop Wire Crimping Tools at Summit Racing.

www.summitracing.com

Thanks.



that is the correct crimper. it will do the metri pack & weather pack.



Perfect. Thanks.



I used the Duestch connectors.



I used the Duestch connectors.

Yeah I saw a couple of your posts while searching. Your engine bay turned out looking pretty clean. Nice work.



I need to do this mod as well. Would be a good winter project.

Sent from my Moto E (4) Plus using Tapatalk



Sorry, I just couldn't resist.

(that's Salt-N-Pepa BTW)



The harness wires are 16awg, correct? Can anyone confirm?



Did you ever confirm this? Not sure the correct kit to order as I want to eliminate my salt and pepper shakers and go with these instead



Stew, did you crimp in the factory wires into the Deusch connectors or buy the connectors with new wire pigtails and just solder/crimp them in place? The loom material looks awesome as well.



be careful with how much you move around these old dry rotted harnesses to replace the salt and pepper connectors as you may fix one problem and create dozen new ones...



Indeed! The insulation on some are getting brittle with heat exposure. I personally may need eventually a new LMR engine harness as well. ….. 8-(



Another option is to remove the wires from the plastic "Salt N Pepper" connectors, clean both pins, spread the male pin with a small nail or awl, slide a piece of heat shrink over one wire, connect the original pins and heat shrink it. I have done this on several harnesses, no more issues.



Interesting idea. Too bad my insulation is getting brittle from heat tho.



Why not just use a zip tie on the connectors to keep them tightly together?



Zip ties aren't a permanent fix & just asking for problems in the near future.
