'96 Cobra Wiring help Please!!!

5550 Views 5 Replies 5 Participants Last post by markolson, Feb 2, 2013

br3t87

Discussion Starter · Jan 29, 2013

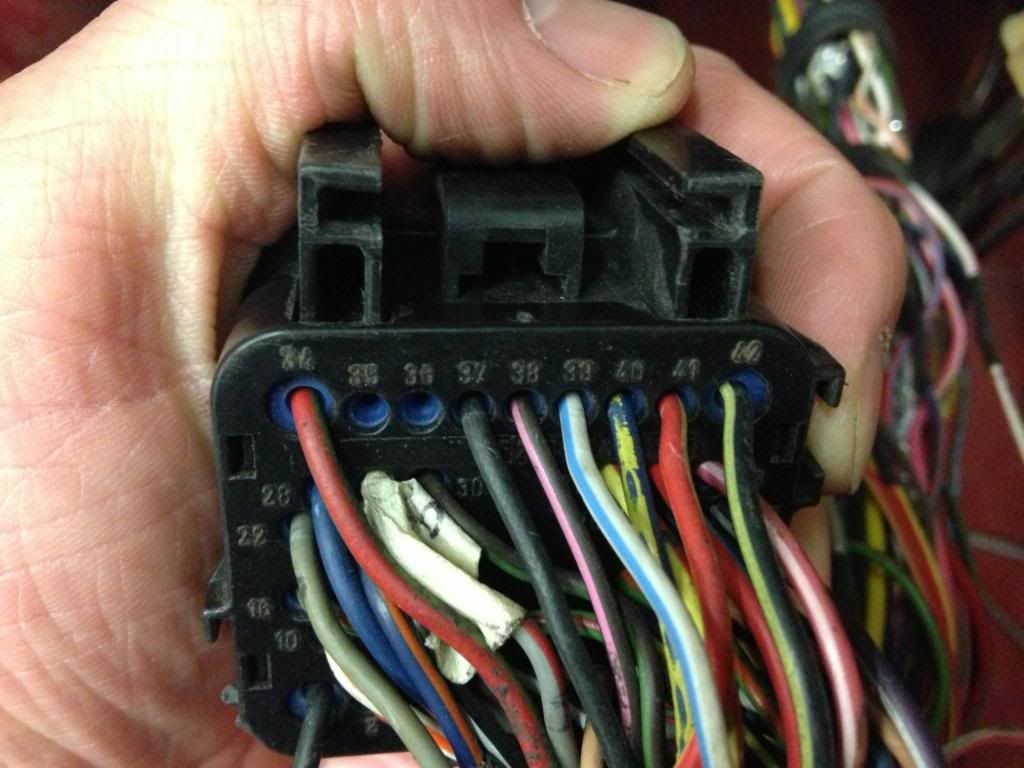

Hey guys i was hoping some one could help me out in a big way. im in the middle of tucking my harness on a fox-mod project and when i was De-pinning the harness on the c104 connector (the one that is by the pass side fire wall that comes from the ecm) i took every picture but the one i need cant find a schematic or any one with the picture showing me the wires... i took a picture of the schematic i have from alldata (which is not correct) and the actual connector. if any one could help me out that would be awesome. i looked high and low before posting with no prevail. the whole top row pin 34-42 is what im looking for,any help would be appreciated!!:livid:

See less See more

Save

1 - 6 of 6 Posts

blown98riored

· #2 · Feb 1, 2013

I have a pinout sheet on them. It was for my 96-98 Cobra 4v. Only problem is that its on my phone and i dont know how to get the pics on here. If u want u can send me a Phone # or email and i can send them thru a text

Save

blown98riored

· #3 · Feb 1, 2013

Im gonna try and type it out for ya....here it goes.lol

PIN# Circuit Circuit Function

34 --- Not used
35 362(R/LG) Right rear heated [email protected] sensor
36 964(T/LB) Mass Air FlowReturn
37 ---- Not used
38 354(LG/R) Engine Coolant Temp Sensor Input
39 743(GY) Intake Air Temp Sensor Input
40 238(DG/Y) Fuel Pump Monitor Input
41 198(DG/O) A/C Cycling Switch Input
42 367(BR) IMRC Intake Manifold Runner Control
43 & 44 --- Not Used

See less See more

Save

Mustang Matt

· #4 · Feb 1, 2013

br3t87 said:
Hey guys i was hoping some one could help me out in a big way. im in the middle of tucking my harness on a fox-mod project and when i was De-pinning the harness on the c104 connector (the one that is by the pass side fire wall that comes from the ecm) i took every picture but the one i need cant find a schematic or any one with the picture showing me the wires... i took a picture of the schematic i have from alldata (which is not correct) and the actual connector. if any one could help me out that would be awesome. i looked high and low before posting with no prevail. the whole top row pin 34-42 is what im looking for,any help would be appreciated!!:livid:

How sure are you that you are holding a plug from a 96 Cobra? Is there any chance that's from either a 94-95 or a 96-98 GT?
